General Description: CTI Rocker, SPDT (MOM)
Part Number: 32-R-922190-01

Series: CTI, Rocker

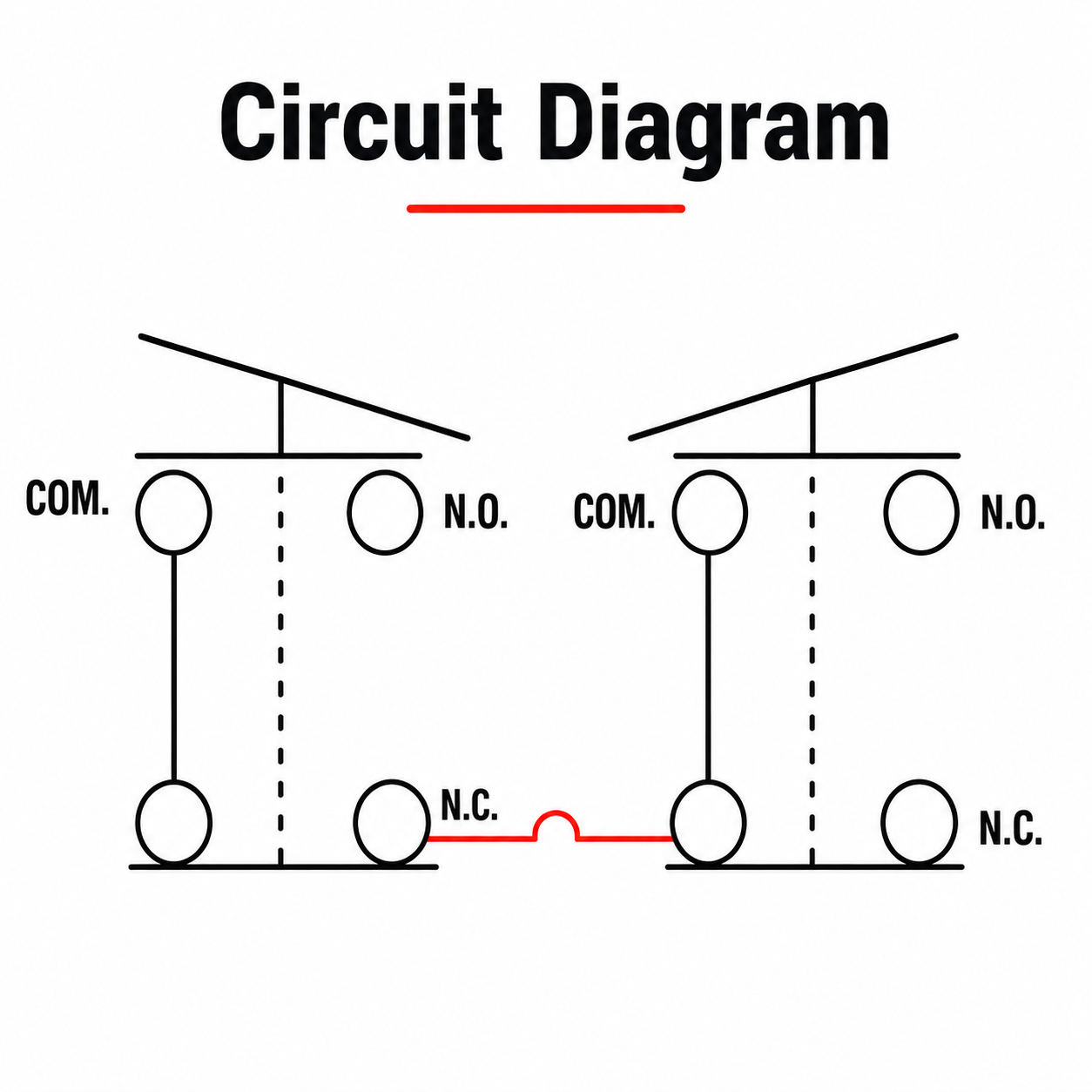

Circuit: SPDT
Switch Function: Momentary (MOM)
Termination Style: Solder Lug

Electrical Rating: Up to 250VAC , 5A
Recommended Max:
125-250VAC, 5A
0-15VDC, 5A
15-30VDC, 3A

Mounting Type: Panel Mount, Rear

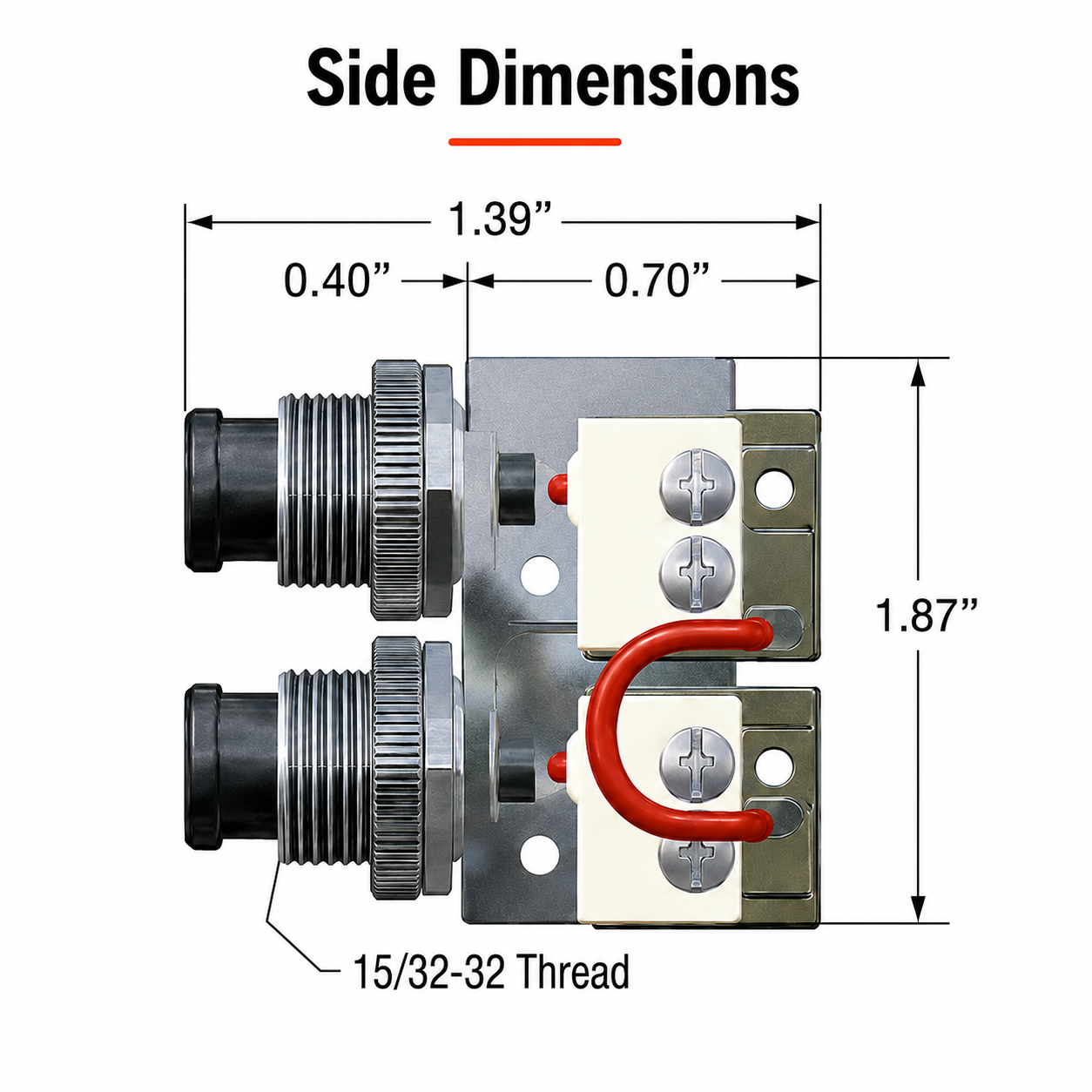

Bushing: 2x 15/32-32

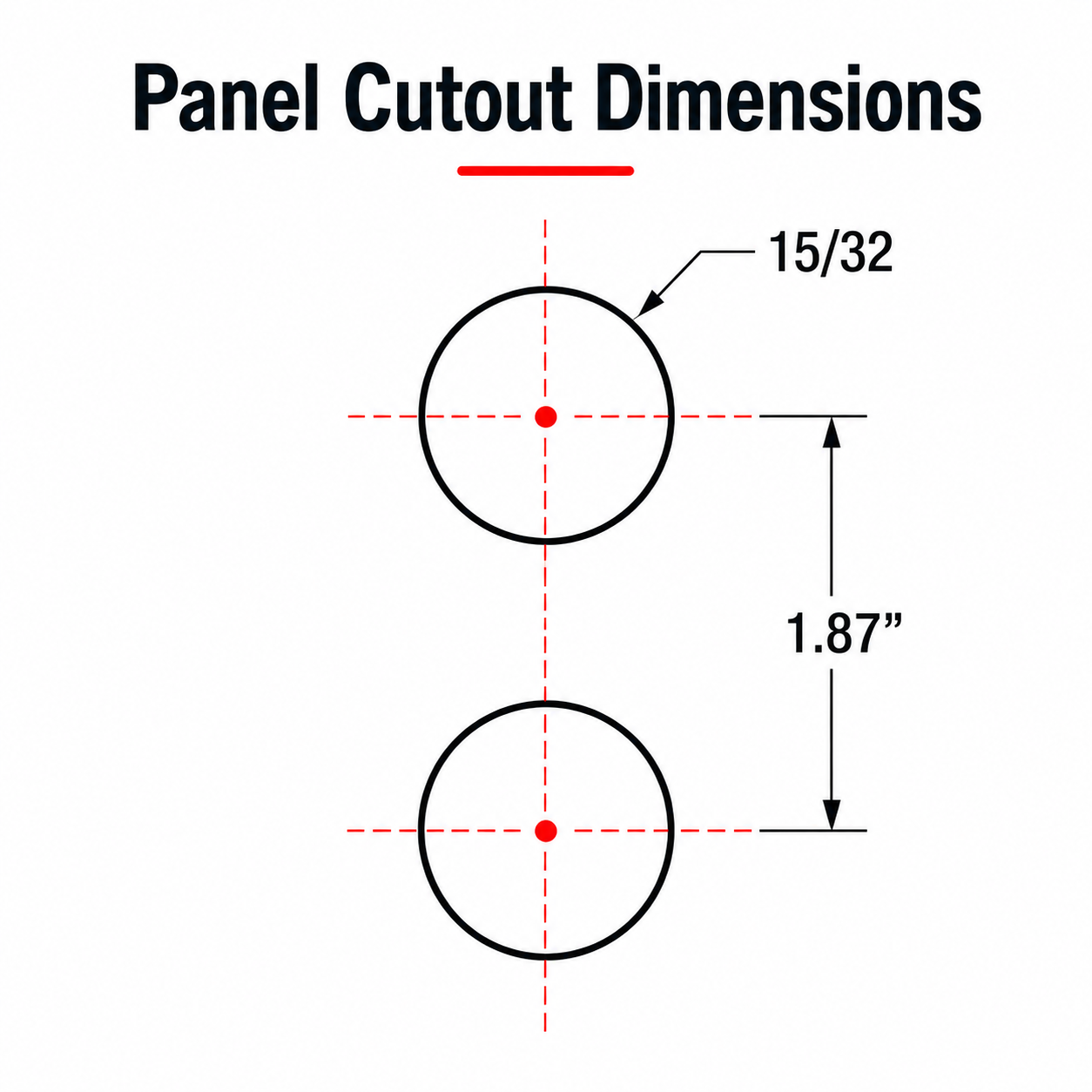

Panel Cutout Dim: 2x 15/32" to 1/2"
Ingress Protection: 51 (without sealing boot)
Additional Features:

Seal Options:

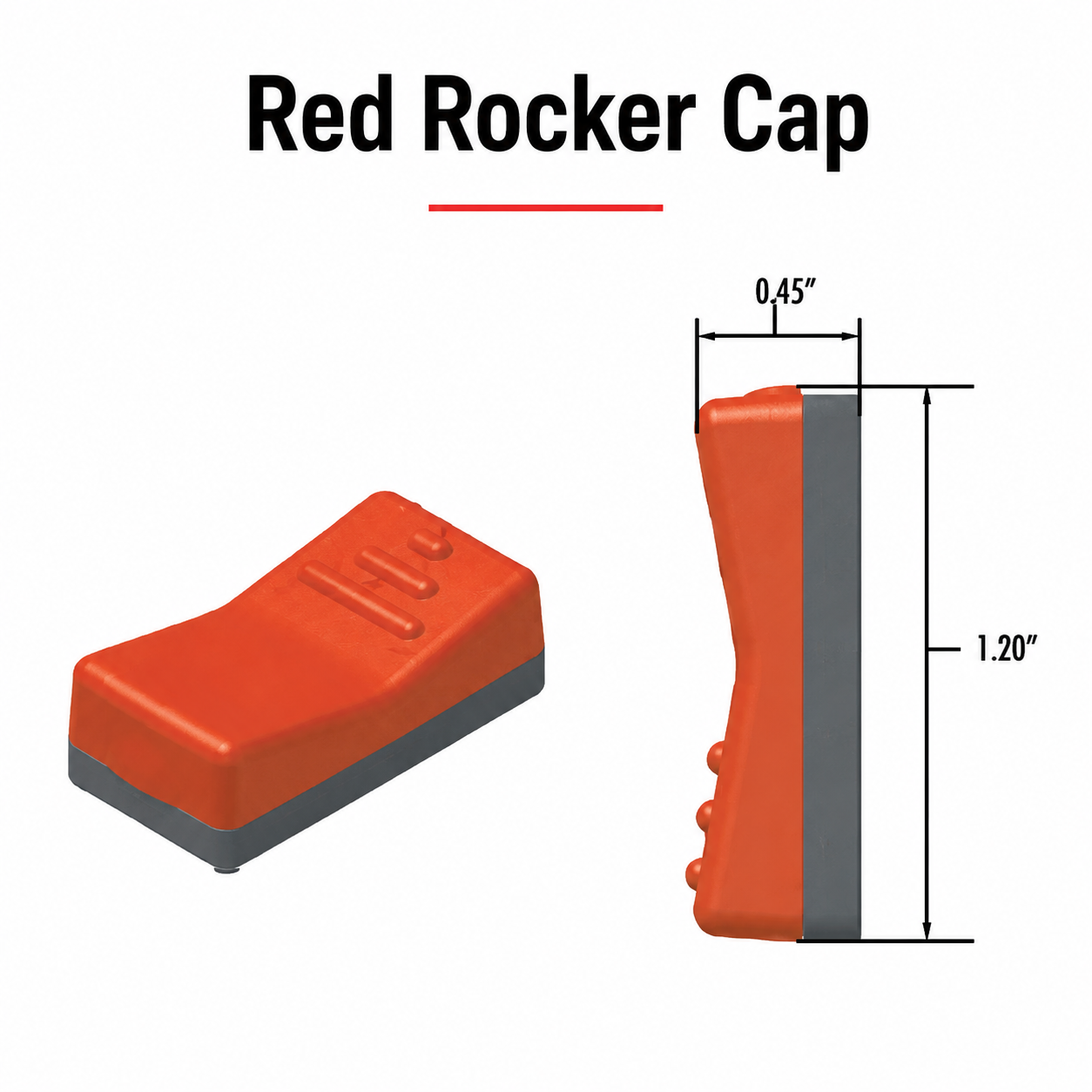

Rocker Seal Caps
2x Round Pushbutton Seal Boots
